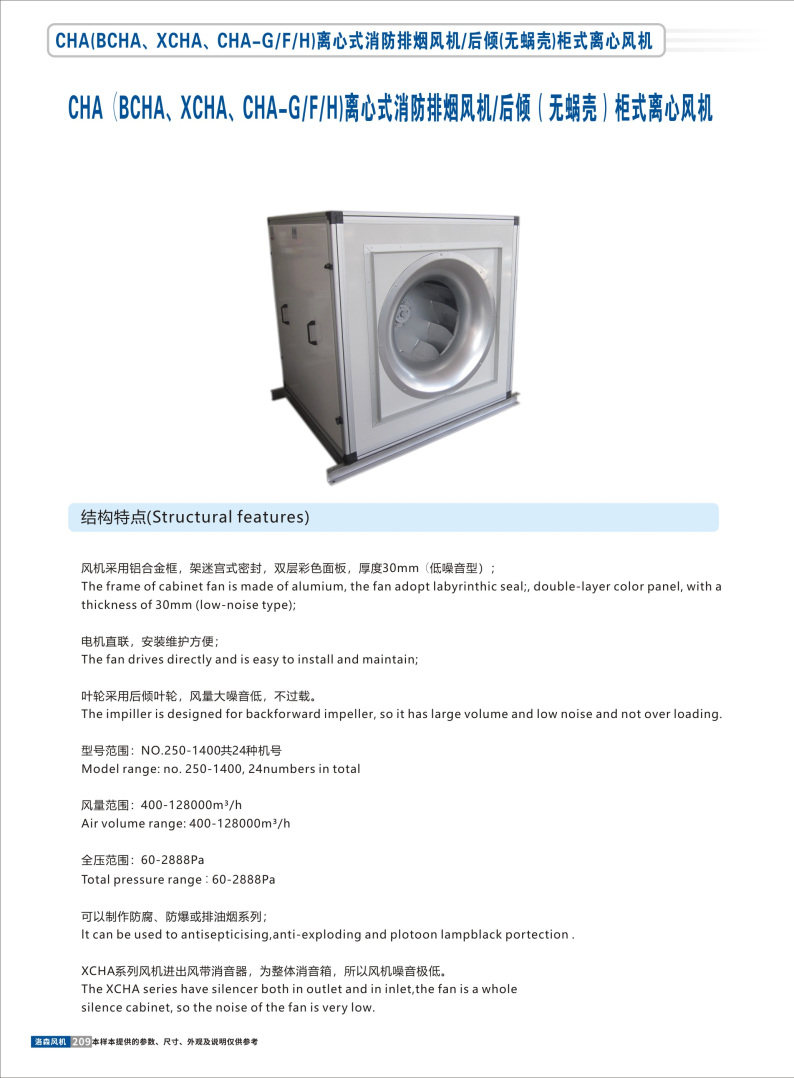

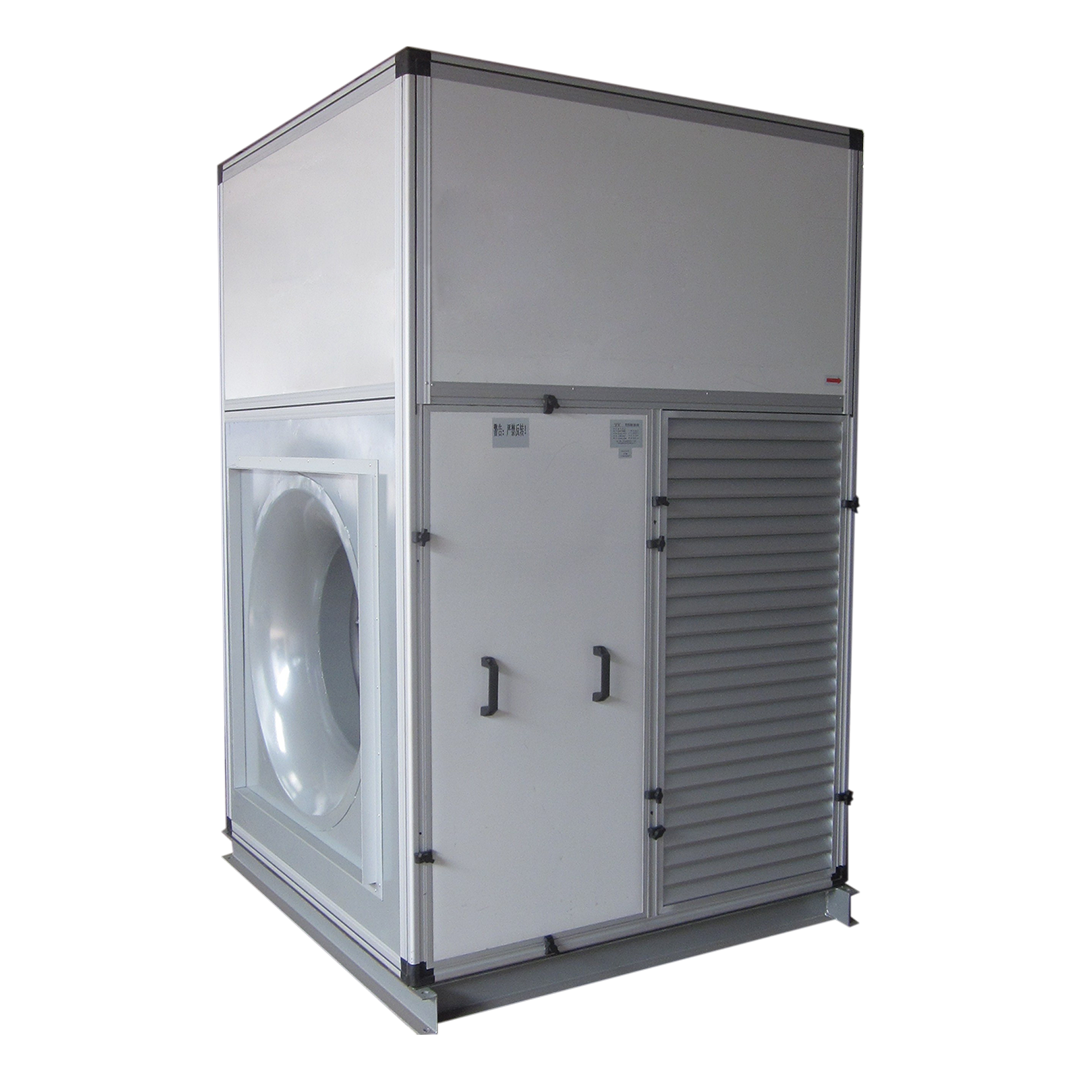

CHA(BCHA、XCHA、CHA-G/F/H)離心式消防排煙風機/后傾(無蝸殼)柜式離心風機
結構特點:
Structural features:
風機采用鋁合金框,架迷宮式密封,雙層彩色面板,厚度30mm(低噪音型);
The frame of cabinet fan is made of alumium, the fan adopt labyrinthic seal;
電機直聯,安裝維護方便;
The fan drives directly and is easy to install and maintain;
葉輪采用后傾葉輪,風量大噪音低,不過載。
The impiller is designed for backforward impeller, so it has large volume and low noise and not over loading.
型號范圍:NO.250-1400共24種機號
Model range: no. 250-1400, 24numbers in total
風量范圍:400-128000m3/h
Air volume range: 400-128000m3/h
全壓范圍:60-2888Pa
Total pressure range:60-2888Pa
可以制作防腐、防爆或排油煙系列;
lt can be used to antisepticising,anti-exploding and plotoon lampblack portection .

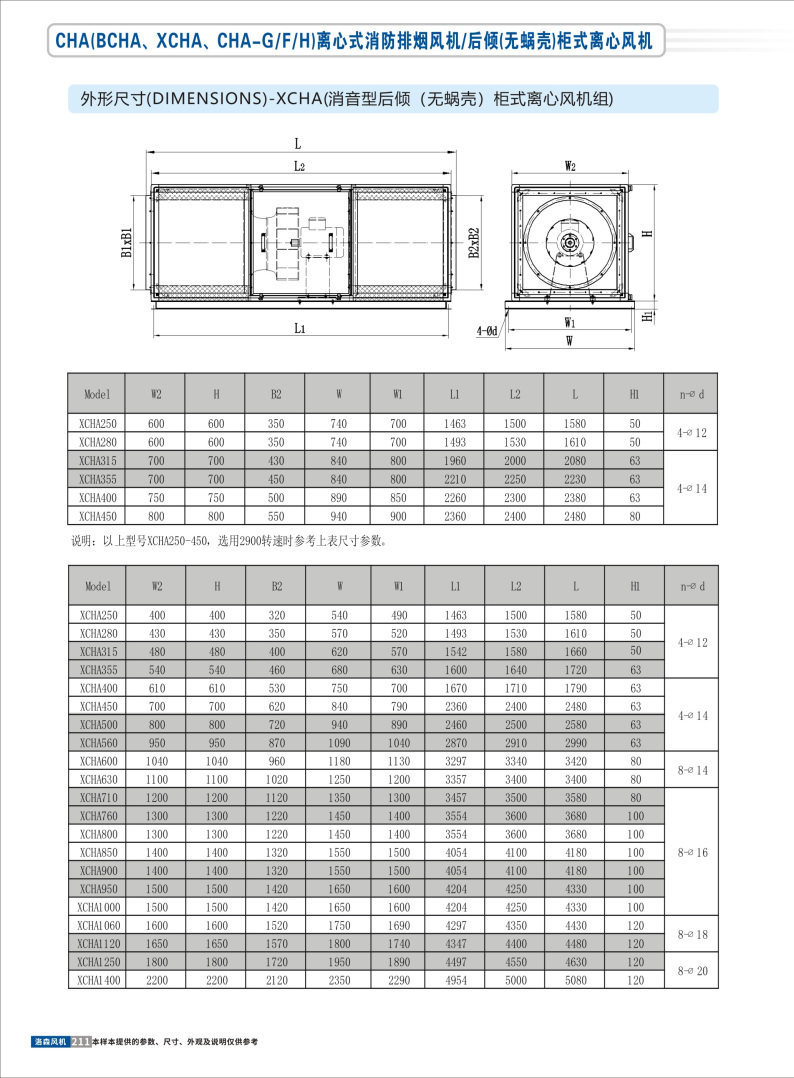

XCHA系列風機進出風帶消音器,為整體消音箱,所以風機噪音極低。
The XCHA series have silencer both in outlet and in inlet,the fan is a whole
silence cabinet, so the noise of the fan is very low.
