詳細介紹
CRT后傾離心風機

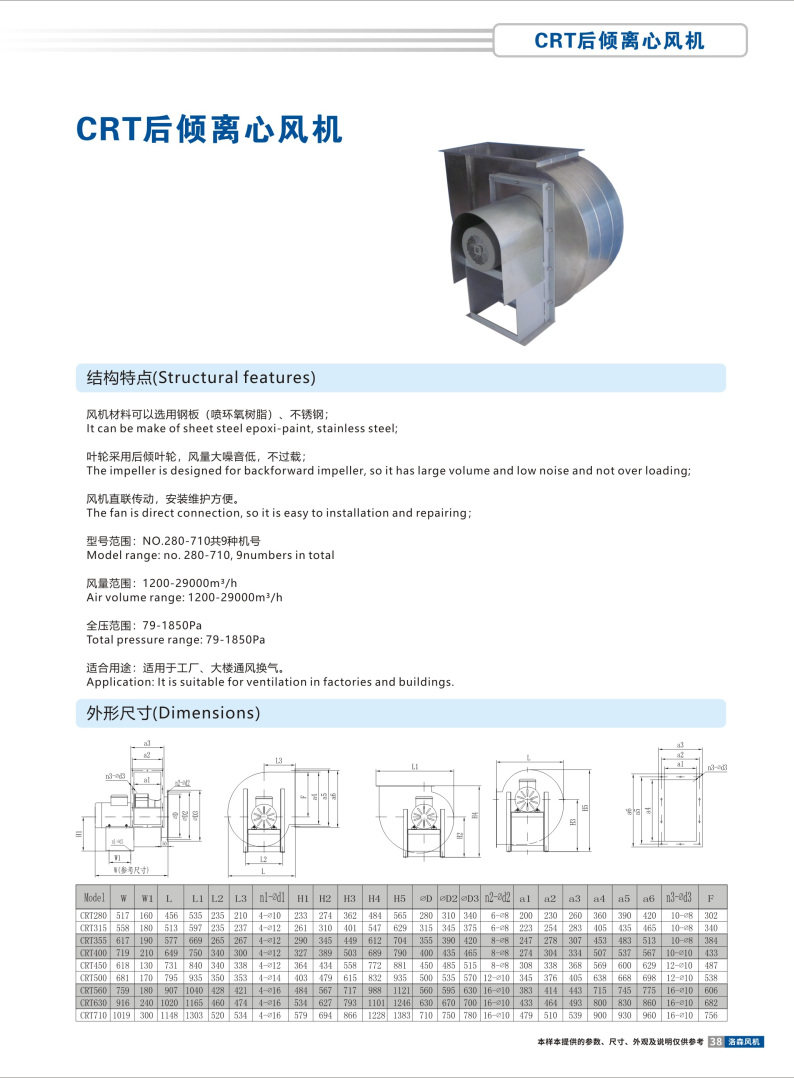

結構特點:
Structural features:
風機材料可以選用鋼板(噴環(huán)氧樹脂)、不銹鋼;
It can be make of sheet steel epoxi-paint, stainless steel;
葉輪采用后傾葉輪,風量大噪音低,不過載;
The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading;
風機直聯(lián)傳動,安裝維護方便。
The fan is direct connection, so it is easy to installation and repairing;
型號范圍:NO.280-710共9種機號
Model range: no. 280-710, 9numbers in total
風量范圍:1200-29000m3/h
Air volume range: 1200-29000m3/h
全壓范圍:79-1850Pa
Total pressure range: 79-1850Pa
適合用途:適用于工廠、大樓通風換氣。
Application: It is suitable for ventilation in factories and buildings.
