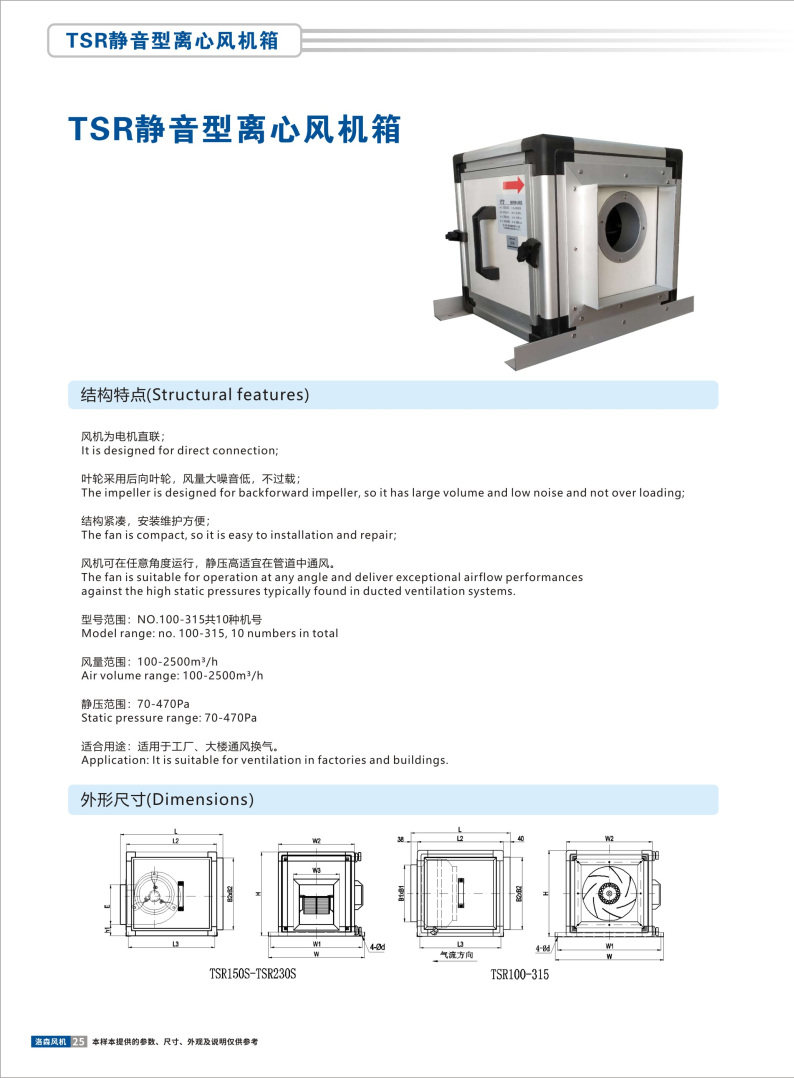

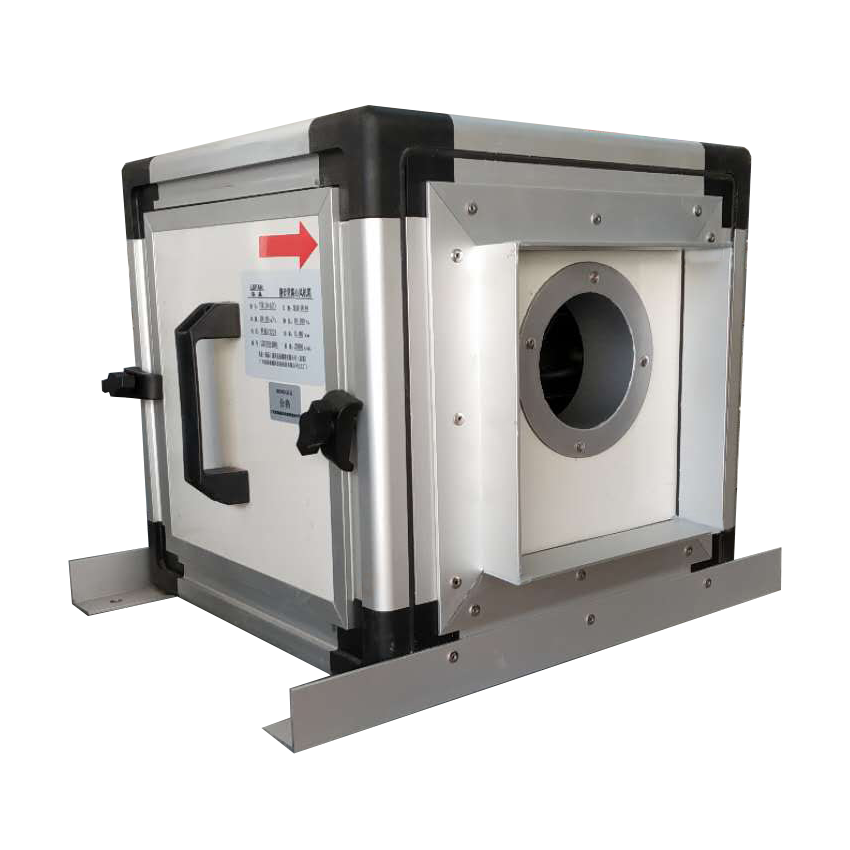

TSR靜音離心風機箱
結構特點:
Structural features:
風機為電機直聯;
It is designed for direct connection;
葉輪采用后向葉輪,風量大噪音低,不過載;
The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading;
結構緊湊,安裝維護方便;
The fan is compact, so it is easy to installation and repair;
風機可在任意角度運行,靜壓高適宜在管道中通風。
The fan is suitable for operation at any angle and deliver exceptional airflow performances
against the high static pressures typically found in ducted ventilation systems.

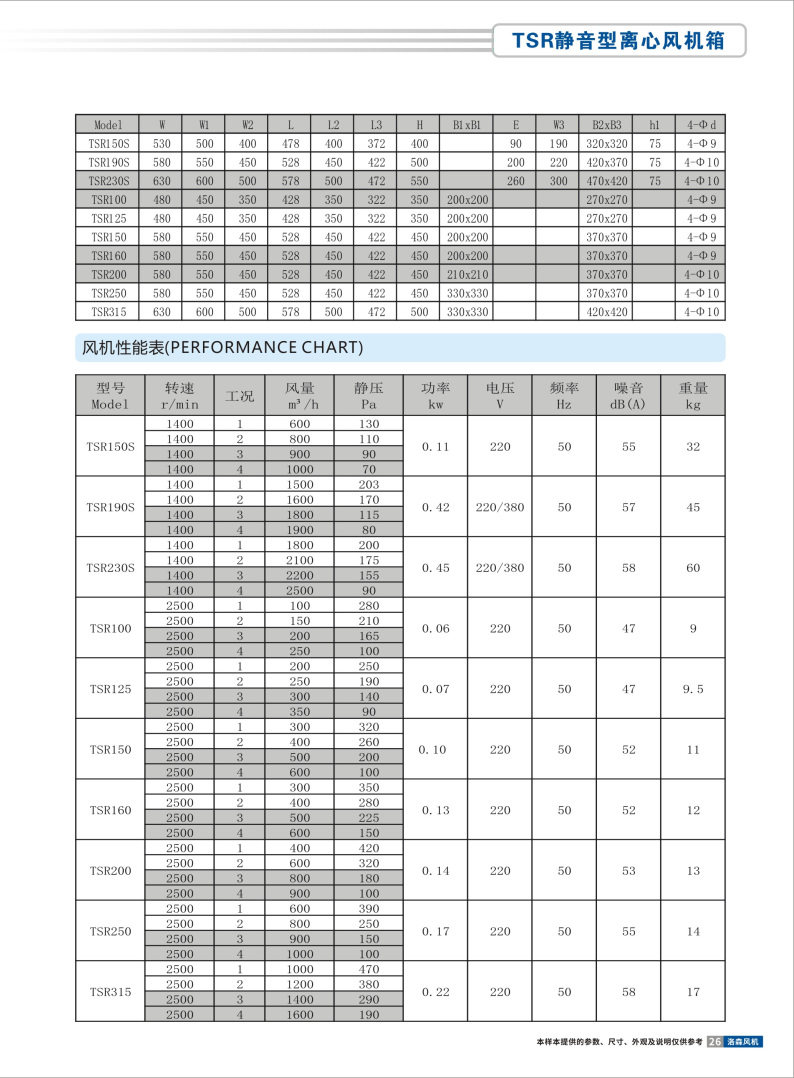

型號范圍:NO.100-315共10種機號
Model range: no. 100-315, 10 numbers in total
風量范圍:100-2500m3/h
Air volume range: 100-2500m3/h
靜壓范圍:70-470Pa
Static pressure range: 70-470Pa
適合用途:適用于工廠、大樓通風換氣。
Application: It is suitable for ventilation in factories and buildings.
