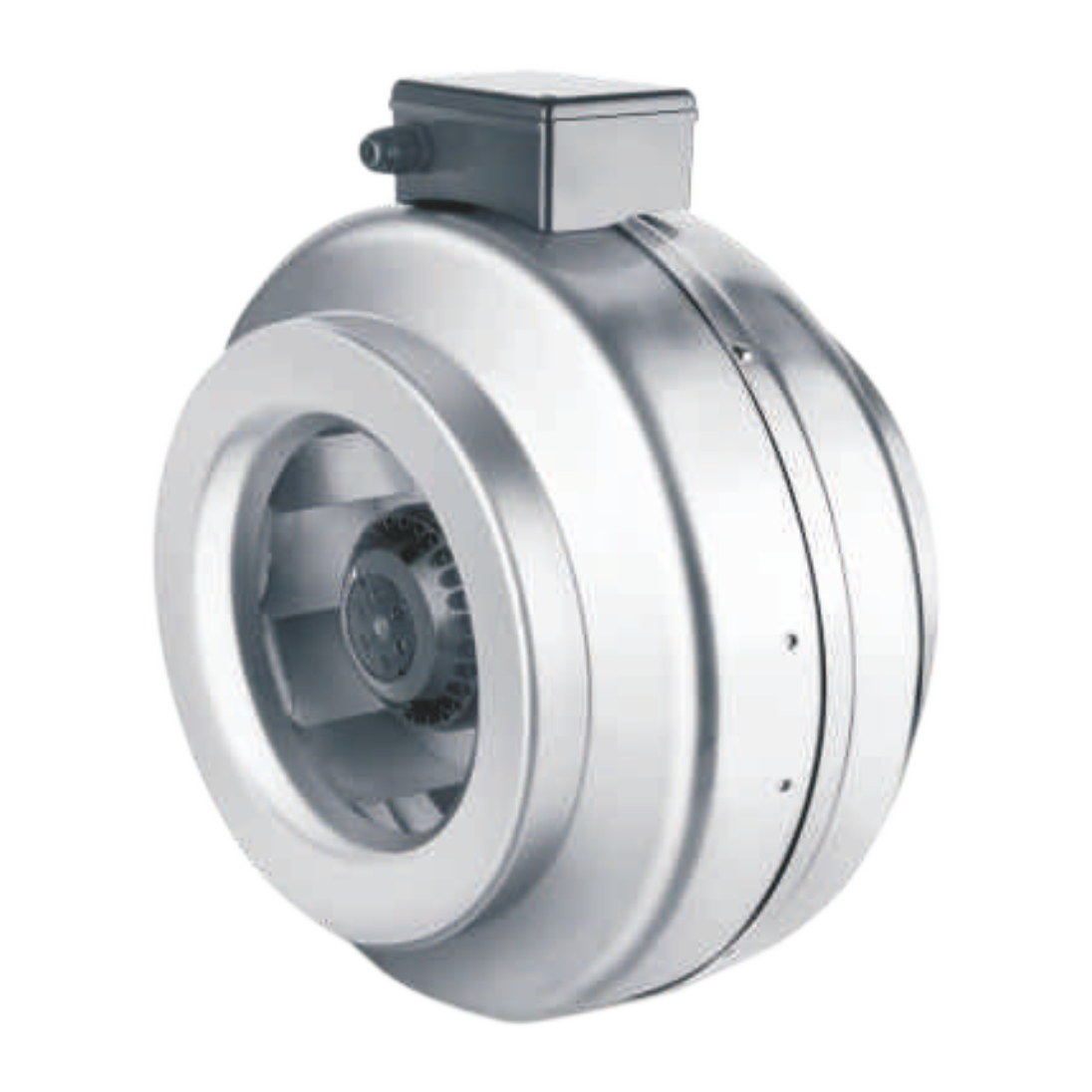

TSK圓形管道離心風機
結構特點:
Structural features:
風機為電機直聯并可接標準圓管;
It is designed for direct connection in-line with stardard diameter circular ducting;
葉輪采用后向葉輪,風量大噪音低,不過載;
The impeller is designed for backforward impeller, so it has large volume and low noise and not over loading;
結構緊湊,安裝維護方便;
The fan is compact, so it is easy to installation and repair;
風機可在任意角度運行,靜壓高適宜在管道中通風。
The fan is suitable for operation at any angle and deliver exceptional airflow performances
against the high static pressures typically found in ducted ventilation systems.
型號范圍:NO.100-315共7種機號
Model range: no. 100-315, 7 numbers in total
風量范圍:67-1680m3/h
Air volume range: 67-1680m3/h
全壓范圍:52-498Pa
Total pressure range: 52-498Pa
適合用途:適用于工廠、大樓通風換氣。
Application: It is suitable for ventilation in factories and buildings.
