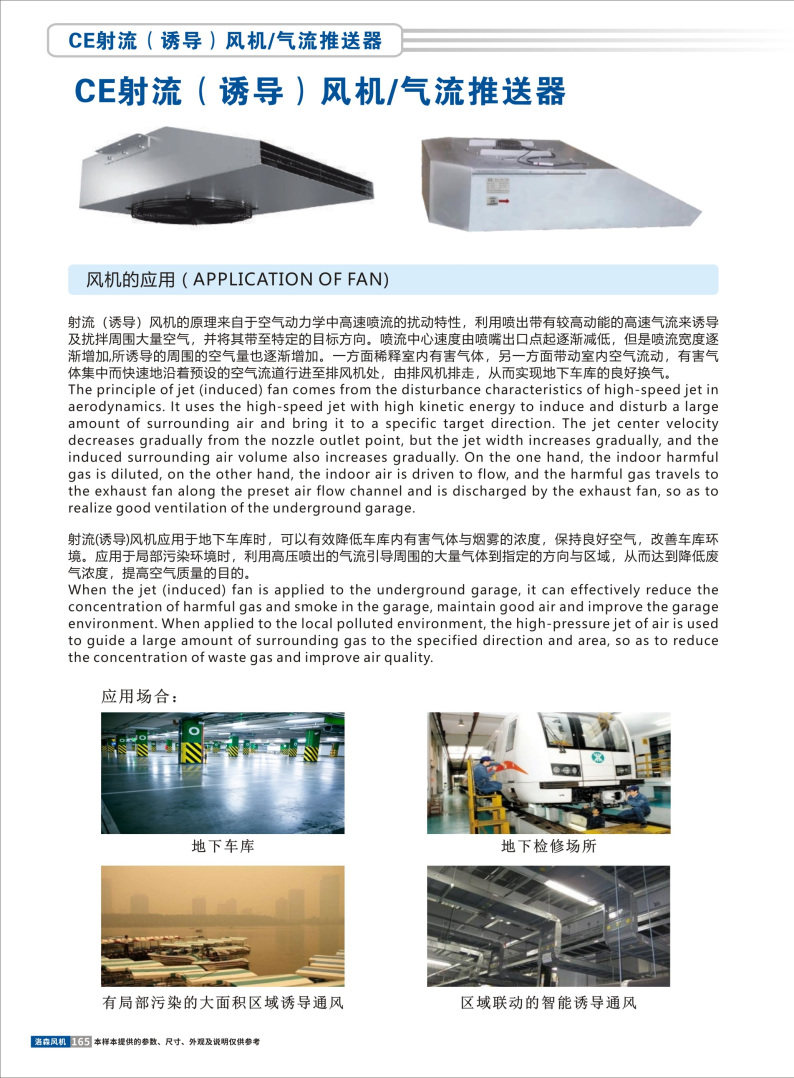

射流(誘導)風機的原理來自于空氣動力學中高速噴流的擾動特性,利用噴出帶有較高動能的高速氣流來誘導及擾拌周圍大量空氣,并將其帶至特定的目標方向。噴流中心速度由噴嘴出口點起逐漸減低,但是噴流寬度逐漸增加,所誘導的周圍的空氣量也逐漸增加。一方面稀釋室內有害氣體,另一方面帶動室內空氣流動,有害氣體集中而快速地沿著預設的空氣流道行進至排風機處,由排風機排走,從而實現地下車庫的良好換氣。
The principle of jet (induced) fan comes from the disturbance characteristics of high-speed jet in aerodynamics. It uses the high-speed jet with high kinetic energy to induce and disturb a large amount of surrounding air and bring it to a specific target direction. The jet center velocity decreases gradually from the nozzle outlet point, but the jet width increases gradually, and the induced surrounding air volume also increases gradually. On the one hand, the indoor harmful gas is diluted, on the other hand, the indoor air is driven to flow, and the harmful gas travels to the exhaust fan along the preset air flow channel and is discharged by the exhaust fan, so as to realize good ventilation of the underground garage.
射流(誘導)風機應用于地下車庫時,可以有效降低車庫內有害氣體與煙霧的濃度,保持良好空氣,改善車庫環境。應用于局部污染環境時,利用高壓噴出的氣流引導周圍的大量氣體到指定的方向與區域,從而達到降低廢氣濃度,提高空氣質量的目的。
When the jet (induced) fan is applied to the underground garage, it can effectively reduce the concentration of harmful gas and smoke in the garage, maintain good air and improve the garage environment. When applied to the local polluted environment, the high-pressure jet of air is used to guide a large amount of surrounding gas to the specified direction and area, so as to reduce the concentration of waste gas and improve air quality.
166頁

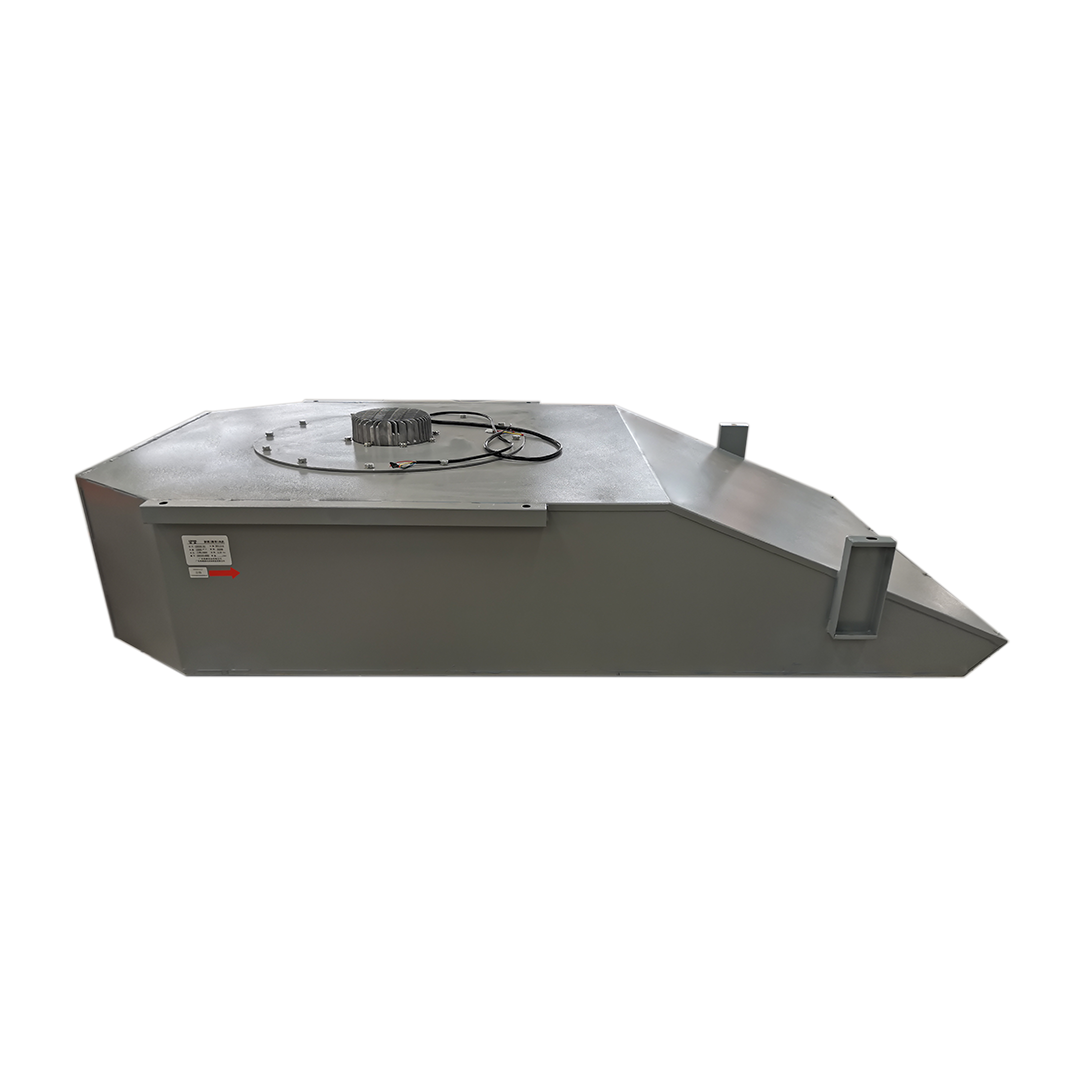

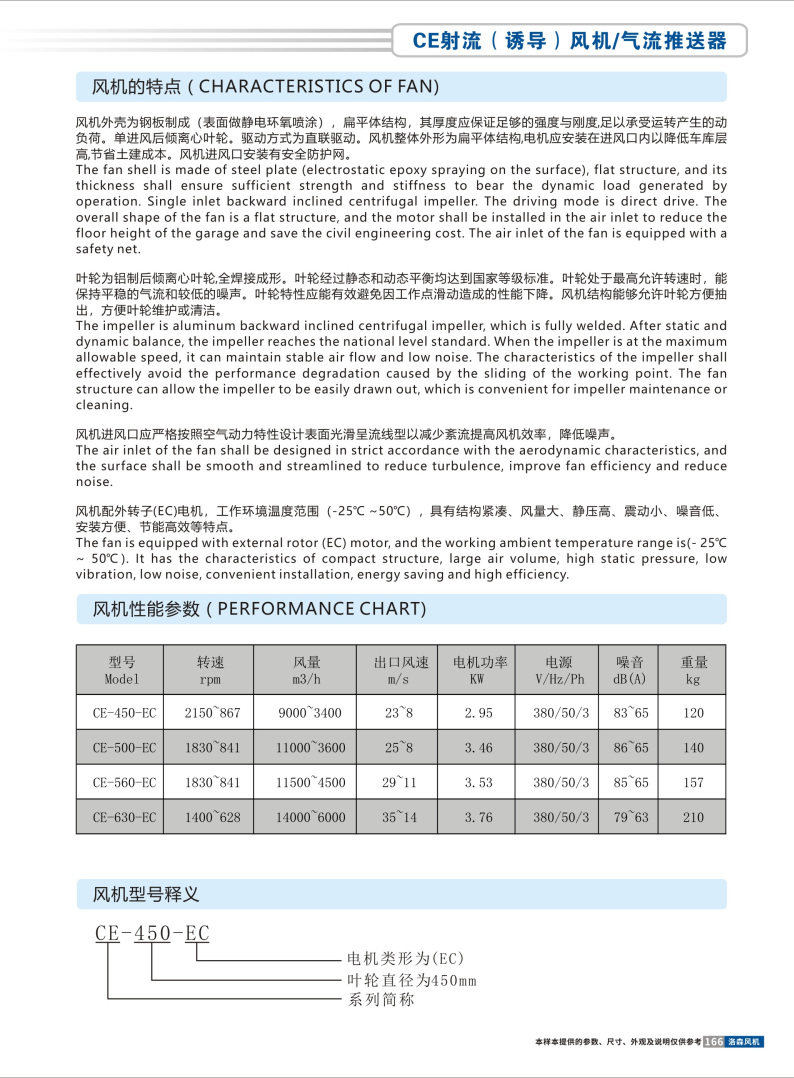

風機外殼為鋼板制成(表面做靜電環氧噴涂),扁平體結構,其厚度應保證足夠的強度與剛度,足以承受運轉產生的動負荷。單進風后傾離心葉輪。驅動方式為直聯驅動。風機整體外形為扁平體結構,電機應安裝在進風口內以降低車庫層高,節省土建成本。風機進風口安裝有安全防護網。
The fan shell is made of steel plate (electrostatic epoxy spraying on the surface), flat structure, and its thickness shall ensure sufficient strength and stiffness to bear the dynamic load generated by operation. Single inlet backward inclined centrifugal impeller. The driving mode is direct drive. The overall shape of the fan is a flat structure, and the motor shall be installed in the air inlet to reduce the floor height of the garage and save the civil engineering cost. The air inlet of the fan is equipped with a safety net.
葉輪為鋁制后傾離心葉輪,全焊接成形。葉輪經過靜態和動態平衡均達到國家等級標準。葉輪處于最高允許轉速時,能保持平穩的氣流和較低的噪聲。葉輪特性應能有效避免因工作點滑動造成的性能下降。風機結構能夠允許葉輪方便抽出,方便葉輪維護或清潔。
The impeller is aluminum backward inclined centrifugal impeller, which is fully welded. After static and dynamic balance, the impeller reaches the national level standard. When the impeller is at the maximum allowable speed, it can maintain stable air flow and low noise. The characteristics of the impeller shall effectively avoid the performance degradation caused by the sliding of the working point. The fan structure can allow the impeller to be easily drawn out, which is convenient for impeller maintenance or cleaning.
風機進風口應嚴格按照空氣動力特性設計表面光滑呈流線型以減少紊流提高風機效率,降低噪聲。
The air inlet of the fan shall be designed in strict accordance with the aerodynamic characteristics, and the surface shall be smooth and streamlined to reduce turbulence, improve fan efficiency and reduce noise.
風機配外轉子(EC)電機,工作環境溫度范圍(-25?C ~50?C),具有結構緊湊、風量大、靜壓高、震動小、噪音低、安裝方便、節能高效等特點。
The fan is equipped with external rotor (EC) motor, and the working ambient temperature range is (- 25 ? C ~ 50 ? C). It has the characteristics of compact structure, large air volume, high static pressure, low vibration, low noise, convenient installation, energy saving and high efficiency.
