主頁 > 產品展示 > 柜式離心風機 > SDZ柜式離心風機(過濾型、消音型)
產品分類:柜式離心風機
點擊次數:326 次
上架時間:2021-12-16 14:20
全國服務熱線:020-84913508 / 020-84918260
我要詢價詳細介紹

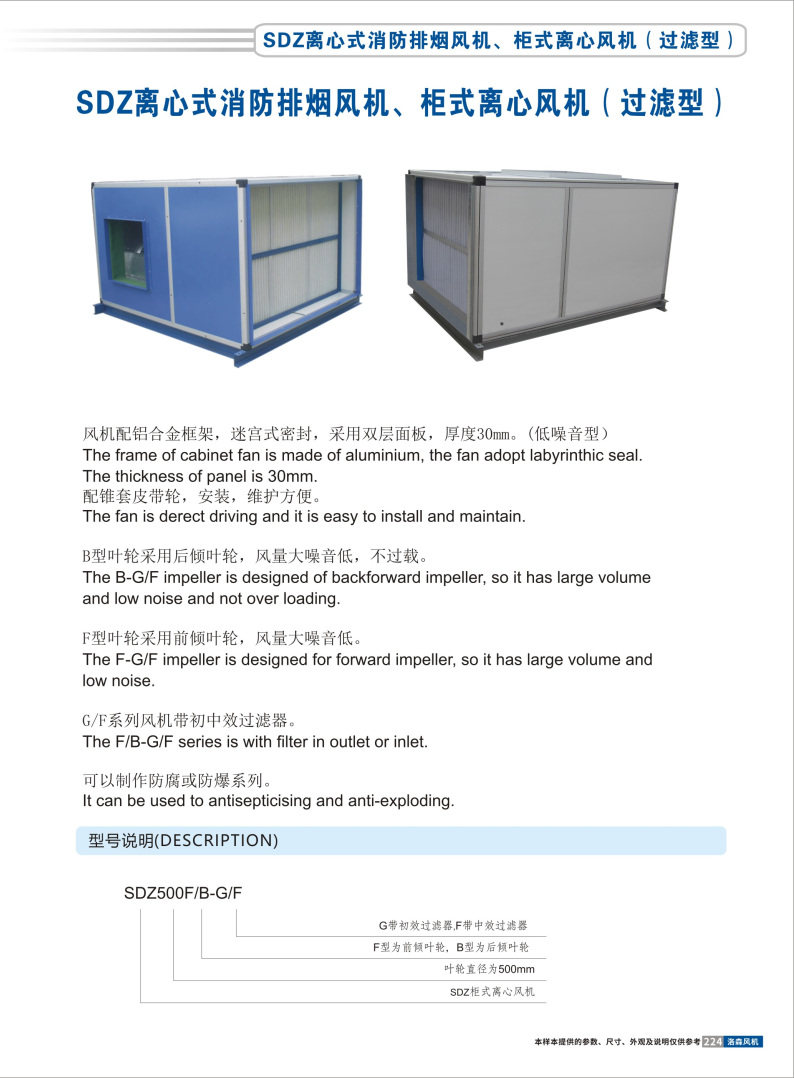

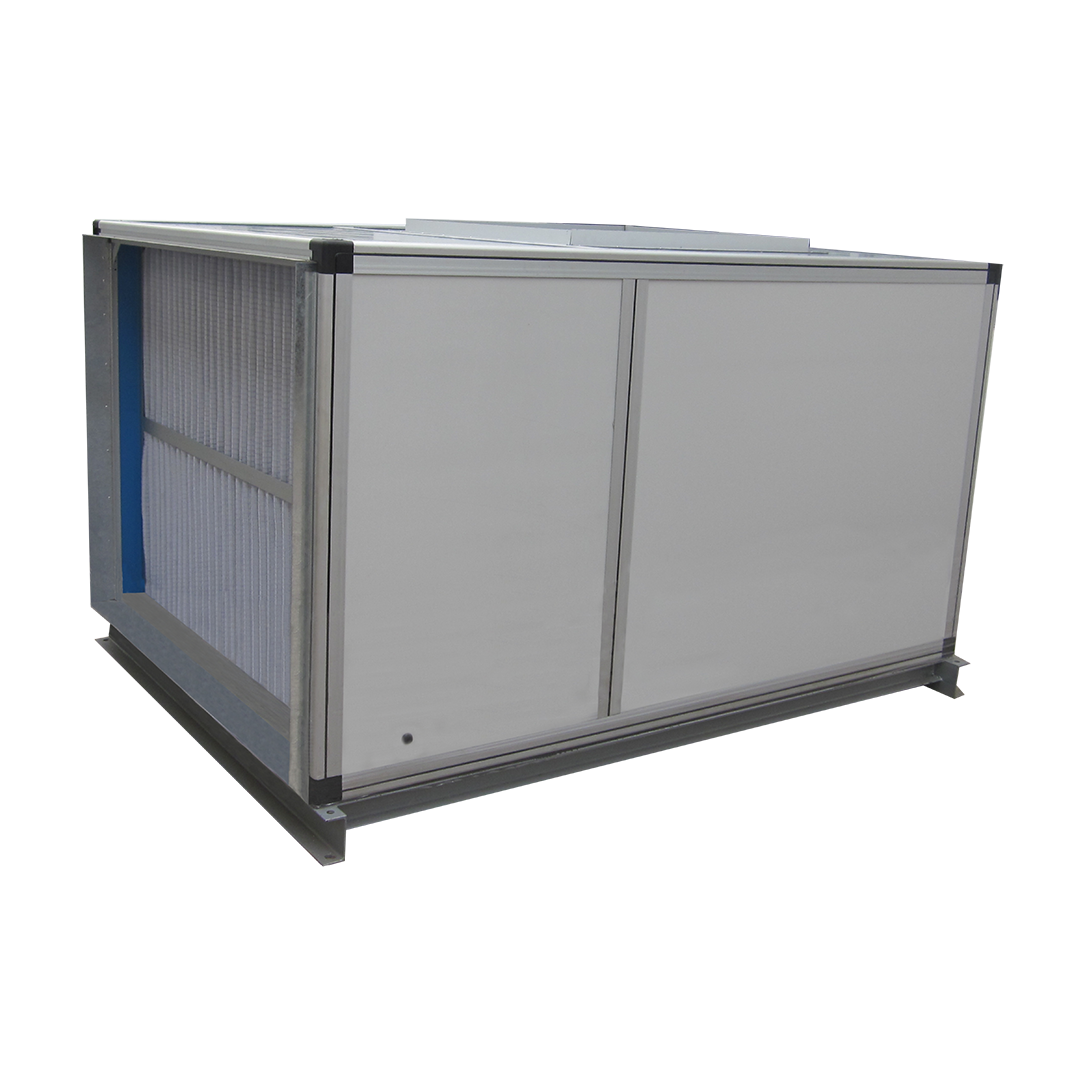

SDZ柜式離心風機(過濾型)
風機配鋁合金框架,迷宮式密封,采用雙層面板,厚度30mm。(低噪音型)
The frame of cabinet fan is made of aluminium, the fan adopt labyrinthic seal.The thickness of panel is 30mm.
配錐套皮帶輪,安裝,維護方便。
The fan is derect driving and it is easy to install and maintain.
B型葉輪采用后傾葉輪,風量大噪音低,不過載。
The B-G/F impeller is designed of back forward impeller, so it has large volume and low noise and not over loading.
F型葉輪采用前傾葉輪,風量大噪音低。
The F-G/F impeller is designed for forward impeller, so it has large volume and low noise.
G/F系列風機帶初中效過濾器。
The F/B-G/F series is with filter in outlet or inlet.
可以制作防腐或防爆系列。
lt can be used to antisepticising and anti-exploding.
