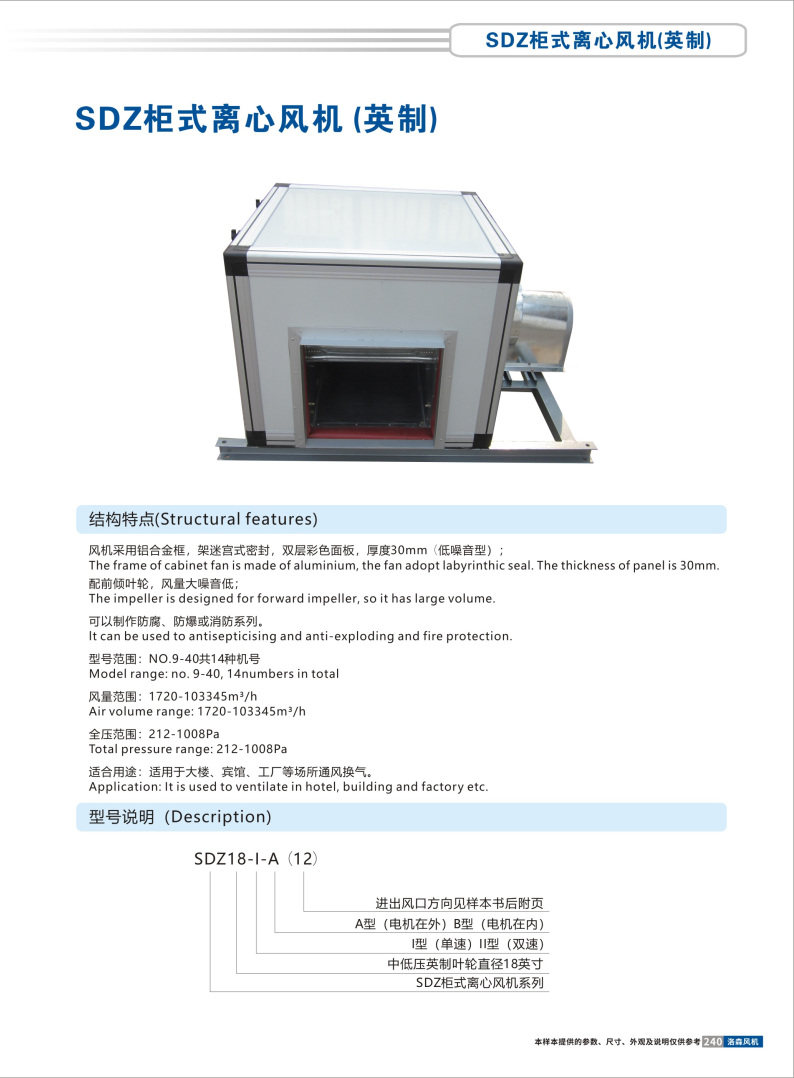

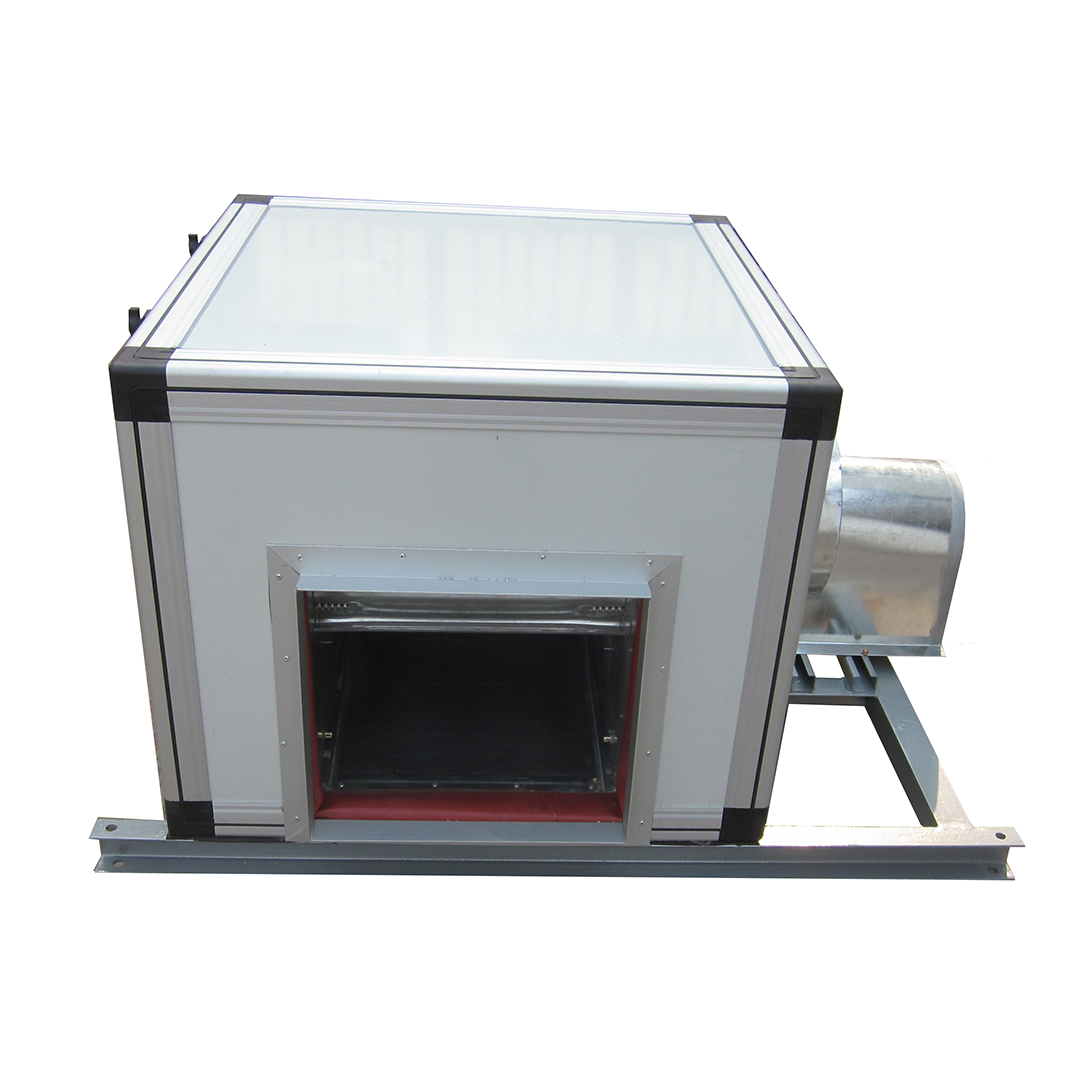

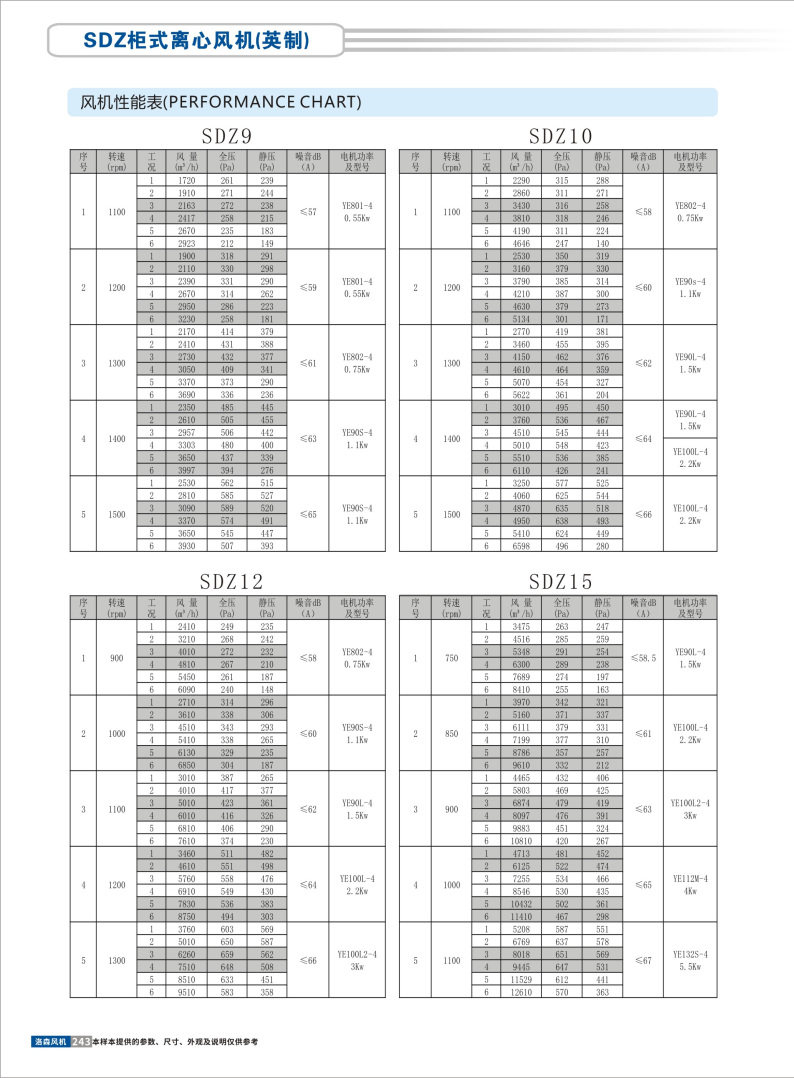

SDZ柜式離心風機(英制)
結構特點:
Structural features:
風機采用鋁合金框,架迷宮式密封,雙層彩色面板,厚度30mm(低噪音型);
The frame of cabinet fan is made of aluminium, the fan adopt labyrinthic seal. The thickness of panel is 30mm.
配前傾葉輪,風量大噪音低;
The impeller is designed for forward impeller, so it has large volume.
可以制作防腐、防爆或消防系列。
lt can be used to antisepticising and anti-exploding and fire protection.
型號范圍:NO.9-40共14種機號
Model range: no. 9-40, 14numbers in total
風量范圍:1720-103345m3/h
Air volume range: 1720-103345m3/h
全壓范圍:212-1008Pa
Total pressure range: 212-1008Pa
適合用途:適用于大樓、賓館、工廠等場所通風換氣。
Application: It is used to ventilate in hotel, building and factory etc.
