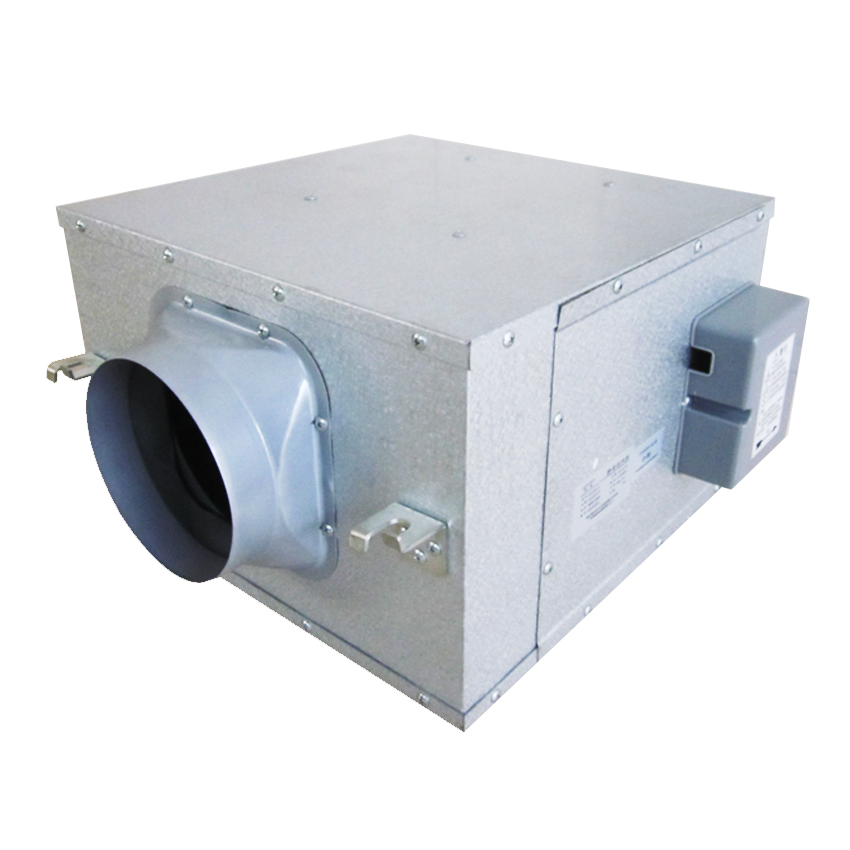

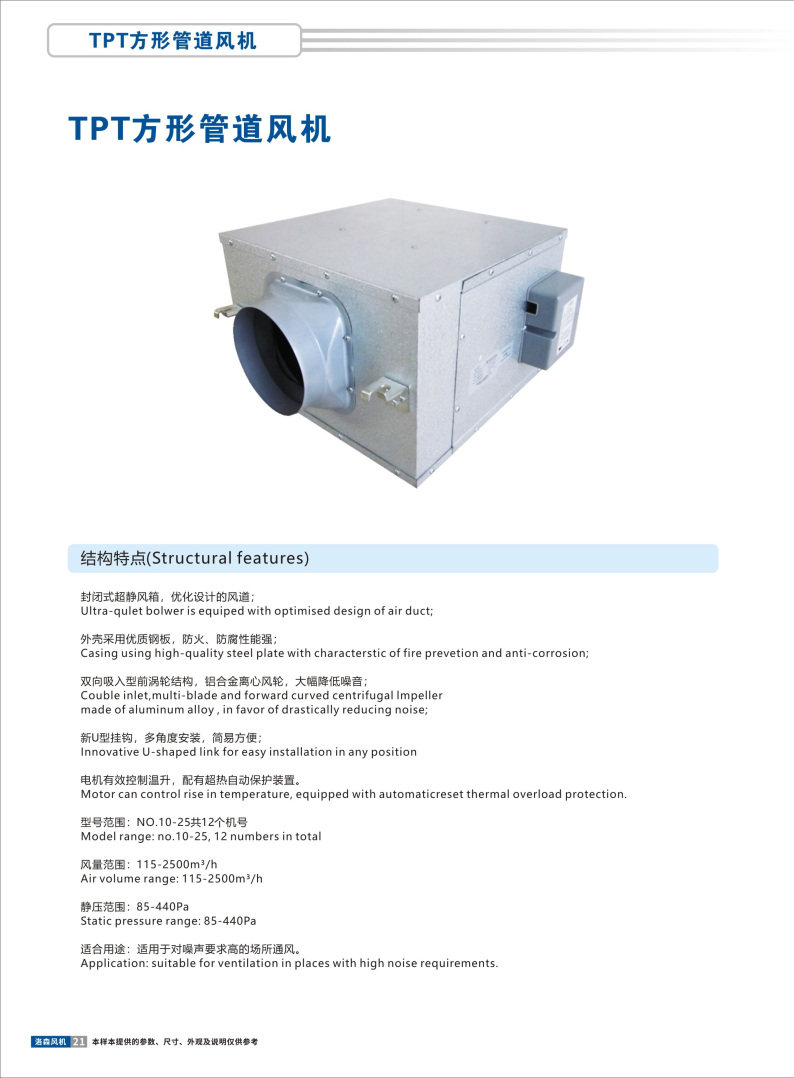

TPT方形管道風機
結構特點:
Structural features:
封閉式超靜風箱,優化設計的風道;
Ultra-qulet bolwer is equiped with optimised design of air duct;
外殼采用優質鋼板,防火、防腐性能強;
Casing using high-quality steel plate with characterstic of fire prevetion and anti-corrosion;
雙向吸入型前渦輪結構,鋁合金離心風輪,大幅降低噪音;
Couble inlet,multi-blade and forward curved centrifugal lmpeller
made of aluminum alloy , in favor of drastically reducing noise;
新U型掛鉤,多角度安裝,簡易方便;
Innovative U-shaped link for easy installation in any position
電機有效控制溫升,配有超熱自動保護裝置。
Motor can control rise in temperature, equipped with automaticreset thermal overload protection.

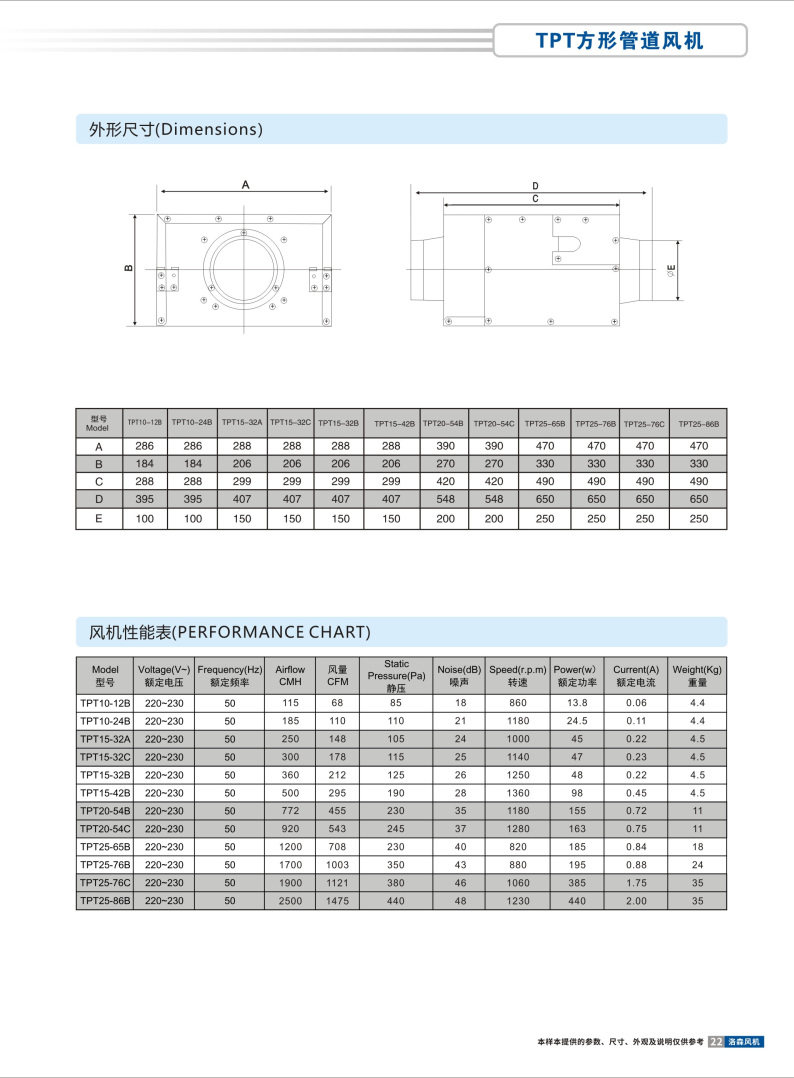

型號范圍:NO.10-25共12個機號
Model range: no.10-25, 12 numbers in total
風量范圍:115-2500m3/h
Air volume range: 115-2500m3/h
靜壓范圍:85-440Pa
Static pressure range: 85-440Pa
適合用途:適用于對噪聲要求高的場所通風。
Application: suitable for ventilation in places with high noise requirements.
